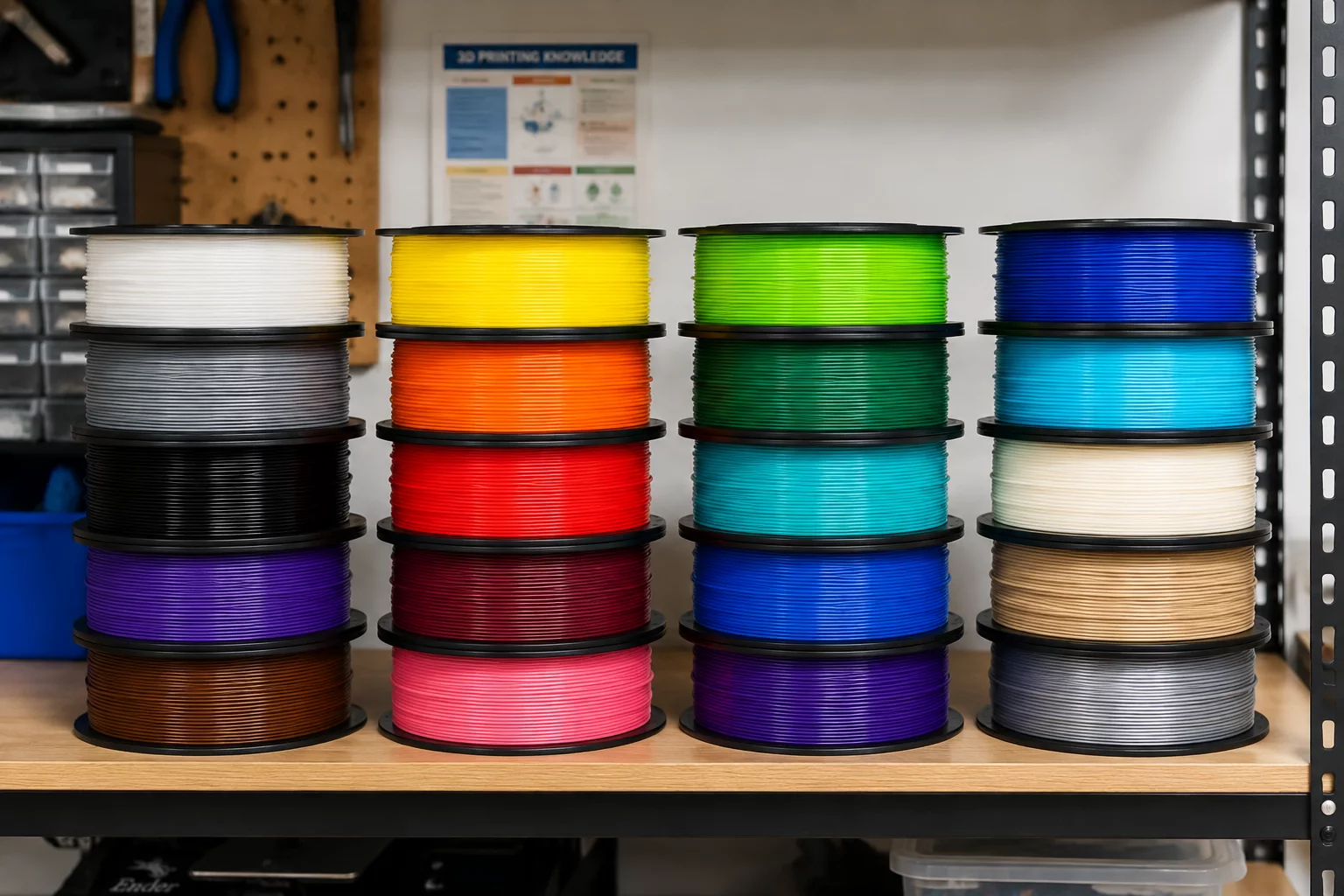

Material Assumptions

Designing with specific material properties, infill behaviors, and physical structural assumptions in mind.

Material Assumptions
MODULE ACTIVE 2–4 CONSTRAINTS
SPECIFICATION DECK // 01
PEDAGOGICAL DESIGN

Track Overview & Pedagogical Value

Digital modeling environments grant infinite strength to theoretical surfaces, creating a false sense of security for developing designers. When models transition from screen to physical thermoplastic extrusion, factors like layer delamination, flexure, and thermal contraction alter practical performance dramatically. The Material Assumptions discipline forces learners to evaluate physical rigidity, mass distribution, and mechanical properties before placing their first 3D solid.

By requiring student engineers to anticipate how standard polymers like PLA, PETG, or TPU behave under everyday stresses, this curriculum eliminates the disconnect between virtual CAD geometry and tactile reality. Students learn why wall thickness determines structural integrity much more efficiently than high infill ratios, encouraging resourceful design that reduces print times and material waste across classroom makerspaces.

Engineering Challenge Boundary

Design models must account for a minimum 2.4 mm wall boundary, zero reliance on disposable support towers, and a maximum allowable filament budget of 45 grams under active load testing.

Enforced Constraint Specifications

01
Perimeter Wall Reinforcement

All structural load-bearing sections must feature a minimum solid wall thickness of 2.4 mm (equivalent to 6 nozzle perimeters at 0.4 mm width) to prevent shear buckling under point loads.

02
Self-Supporting Overhang Thresholds

Overhang angles cannot exceed 45 degrees from the vertical axis, and horizontal bridging spans are capped at 15 mm, eliminating the need for sacrificial support structures entirely.

03
Anisotropic Layer Alignment

Components subject to bending or tensile force must be oriented on the virtual build platform such that primary stress paths run parallel to continuous extrusion paths rather than across layer seams.

Classroom & Makerspace Implementation

Implementing this track in a classroom setting transforms standard CAD exercises into authentic materials engineering sessions. Instructors configure print slicing software with standardized material profiles, enabling students to calculate mass, print duration, and predicted deformation before releasing jobs to 3D printers.

  • Pre-slice digital models to verify that total estimated filament usage stays strictly below the 45-gram challenge threshold.
  • Perform caliper inspections across critical load points to ensure physical wall thickness complies with the 2.4 mm specification.
  • Conduct standardized weight-bearing deflection tests to observe mechanical stiffness and document failure points along layer boundaries.
